Half overlay Soft Close Hinge 110°

Description

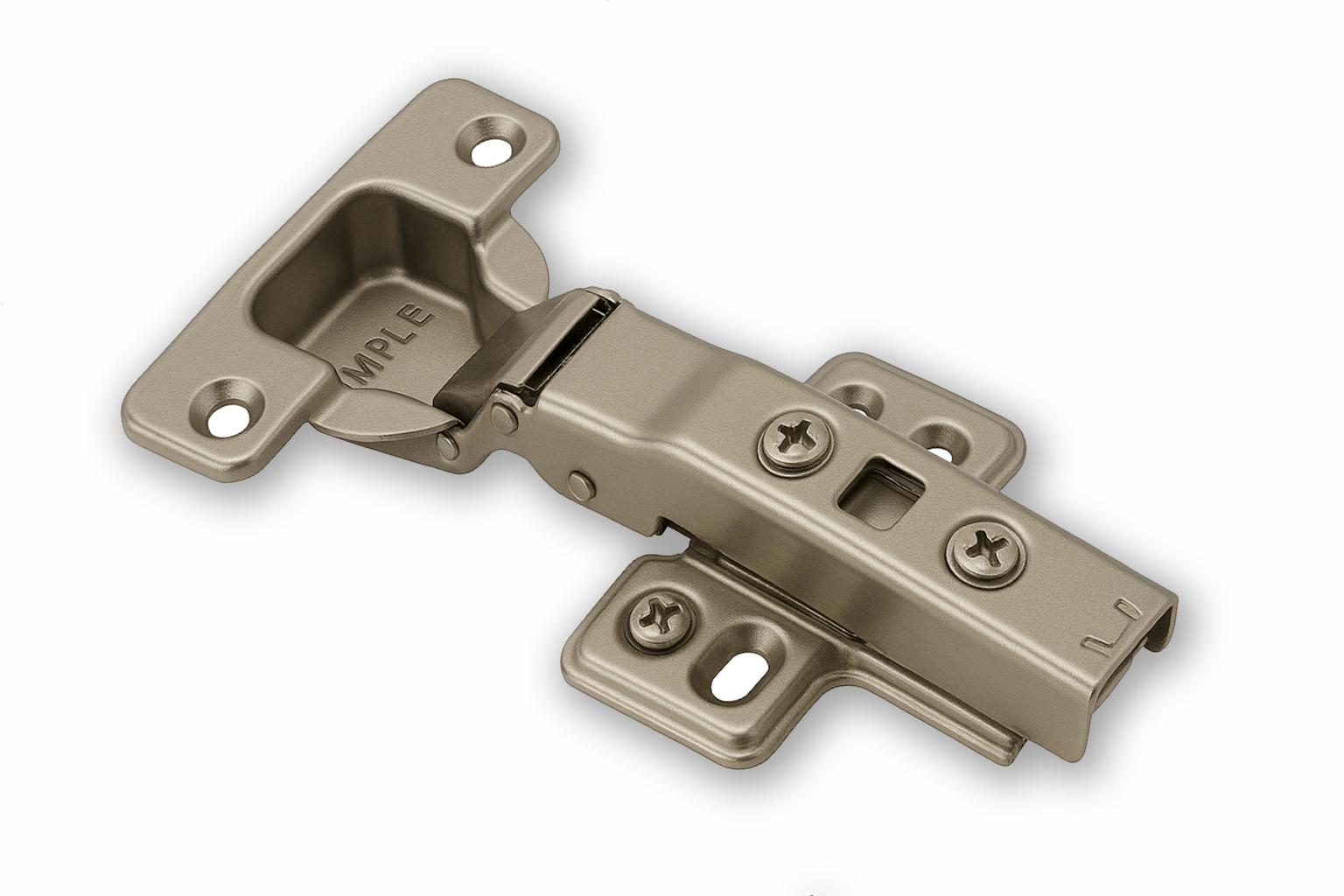

3D Soft Close Hinge 110° With Dowels

The 3D Soft Close Hinge 110° with dowels is engineered for durability, adjustability, and efficient installation. Designed for Half overlay applications, this hinge provides a 110° opening angle and integrates a soft-close mechanism to ensure smooth and silent door operation.

The 3D adjustment (side, height, and depth) allows precise door alignment after installation, reducing service time on-site. Pre-mounted dowels provide secure and repeatable positioning, ideal for production or flat-pack assembly environments.

Specifications:

• Opening angle: 110°

• Application: Half overlay

• Mounting: Pre-inserted dowels

• Adjustment: 3D – side, height, and depth

• Soft-close: Integrated hydraulic damper

• Cup diameter: 35mm

Key Benefits:

• Fast installation with dowel mounting system

• Precise alignment with 3D adjustability

• Long service life with high-quality soft-close mechanism

• Ideal for modular kitchen, wardrobe, and commercial joinery applications
